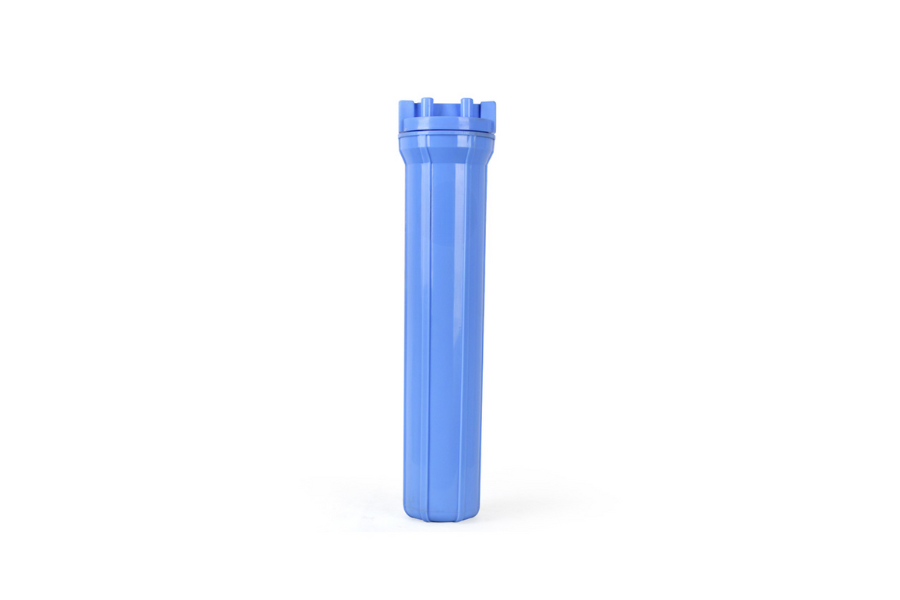

DESCRIPTION
Cartridge filters housing are an important component in the filtering process, designed in cylindrical shape it houses a replaceable filter element – cartridge. industrial grade housings. It delivers high performance and exhibits good atmospheric resistance.
Technical Specifications:
Materials
Housing Sump / Top Polypropylene
Vent Polypropylene with Stainless Steel Spring and Screw
“O”-ring / Gasket Silicon, FKM, Buna-N, EPDM
Suitable cartridge
Length 20”
Diameter 2.5”
End Connection DOE / ZeroLeak (for 4.5” OD Cartridges only)
Configuration
Housing Size 10”
Diameter Slim (for 2.5”)
Connection Type BSP (F) Threaded
Connection Size (Slim) 1/2”, 3/4”, 1”
Operating conditions
Maximum operating pressure 0.8 MPa (8.0 bar; 113.7 psid) @ 21°C (69.8°F)
Operating temperature range 4°C ( 39.2°F ) to 70°C ( 158°F )
Flow rates
20” Slim upto 2 m3 /hr
